YA-D5-4  Electric Hospital Trendelenburg Bed
  • YA-D5-4  Electric Hospital Trendelenburg Bed
  • YA-D5-4  Electric Hospital Trendelenburg Bed
  • YA-D5-4  Electric Hospital Trendelenburg Bed
  • YA-D5-4  Electric Hospital Trendelenburg Bed

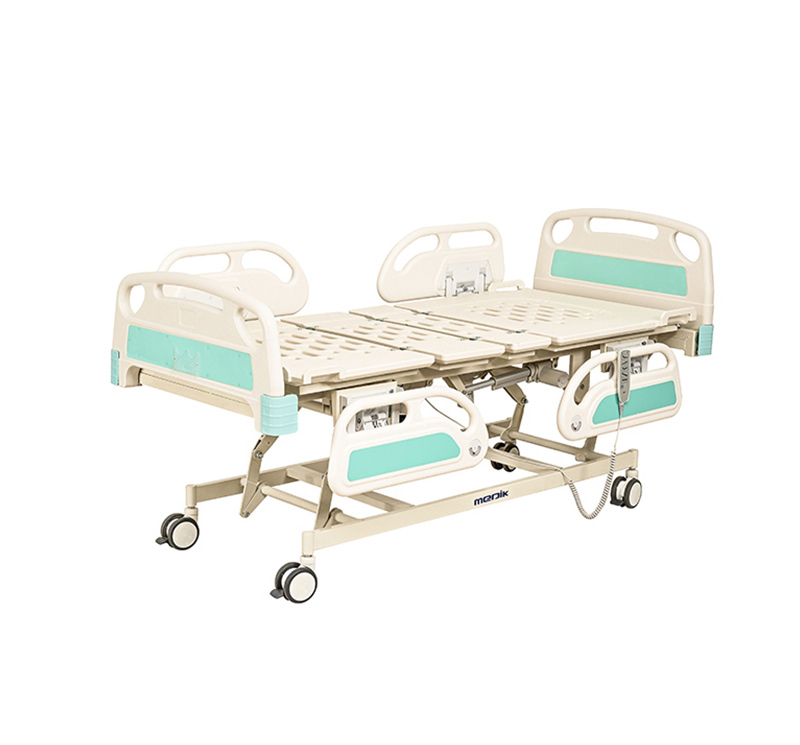

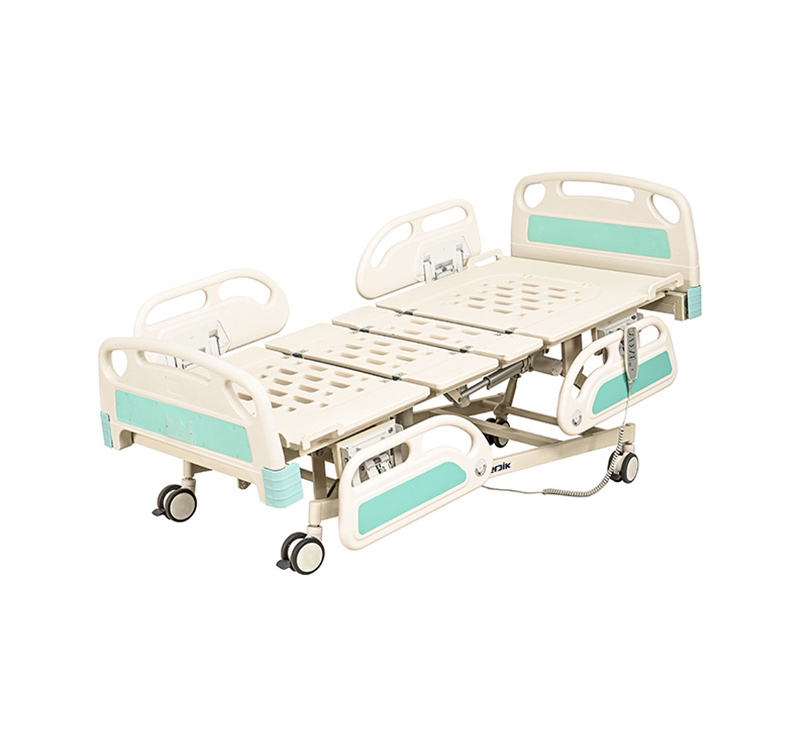

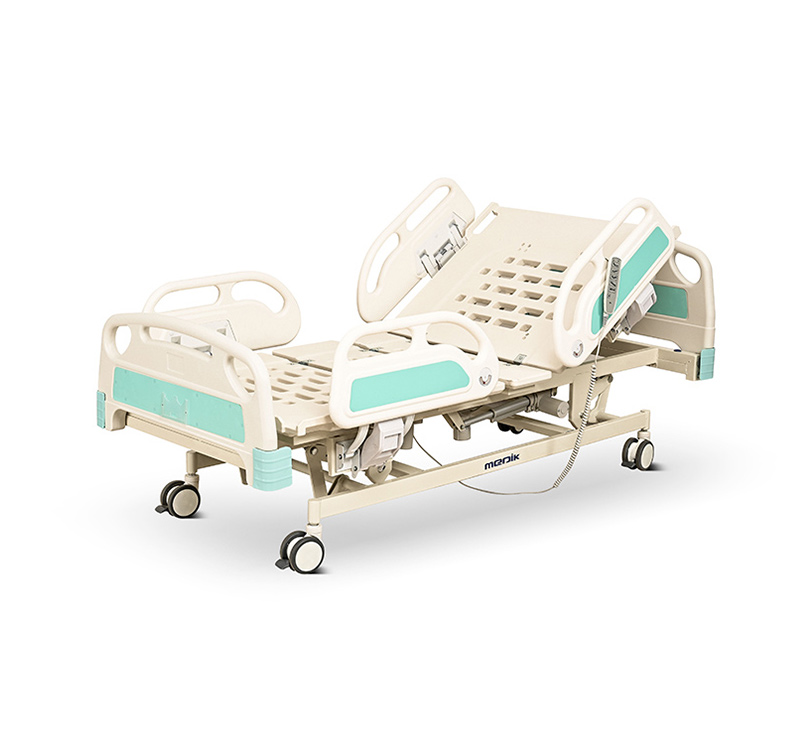

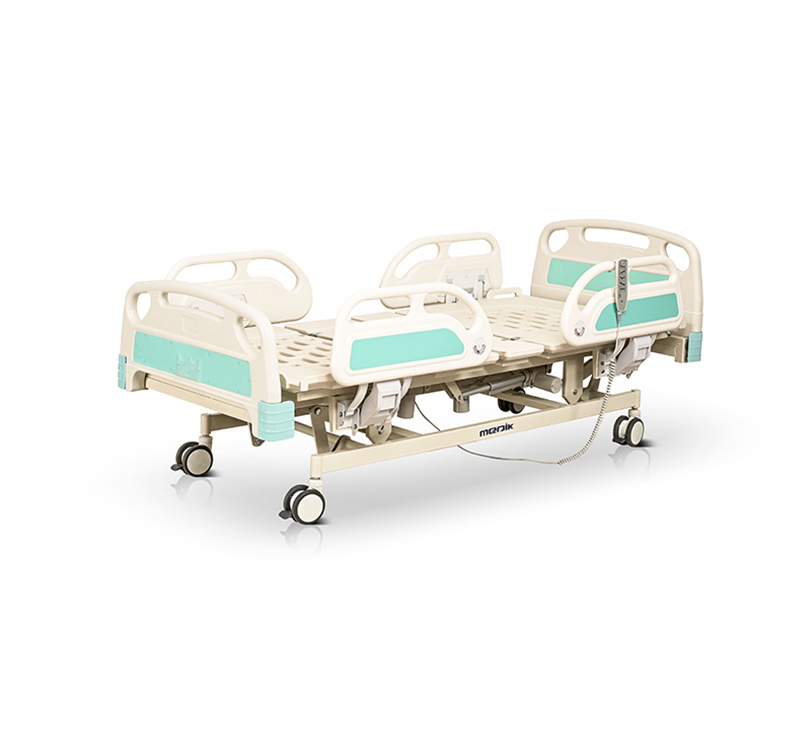

YA-D5-4 Electric Hospital Trendelenburg Bed

share

Model: YA-D5-4

Overall Size: 2240*1060*500-780mm

Safe Working Load: 225kg

Functions: Back section adjustable, Knee section adjustable, High-Low, Trendelenburg, Reverse Trendelenburg

Certificate: ISO/CE


  • Product Details

Watch Video


YA-D5-4 is an economical five-function electric hospital ICU Trendelenburg bed. The remote control controls all movements, It is a recovery platform that can perfectly serve as the hospital's ICU bed with the below excellent features.

Main features

- Four split side rails, drop down under platform

- Hand remote control

- Detachable head/footboard with easy lock

- Caster diameter of 125mm with brakes

- Bumper caster on four corners

- Auto-counter to provide the patient from sliding onto foot end

- With angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)

- Manual CPR on both sides(optional)

- Detachable head footboard for emergency operation

Technical parameter

Model YA-D5-4
Size 2240*1060*500-780mm
Lying surface: 2045* 900mm
High-Low: 500-780mm
Back section adjustable 0° to 75°
膝盖部分adjustable 0° to 40°
Trendelenburg 0° to 12°
Reverse trendelenburg 0° to 12°
Safe working load 170kg
Max working load 225kg
